METEO-2000 SunTracker

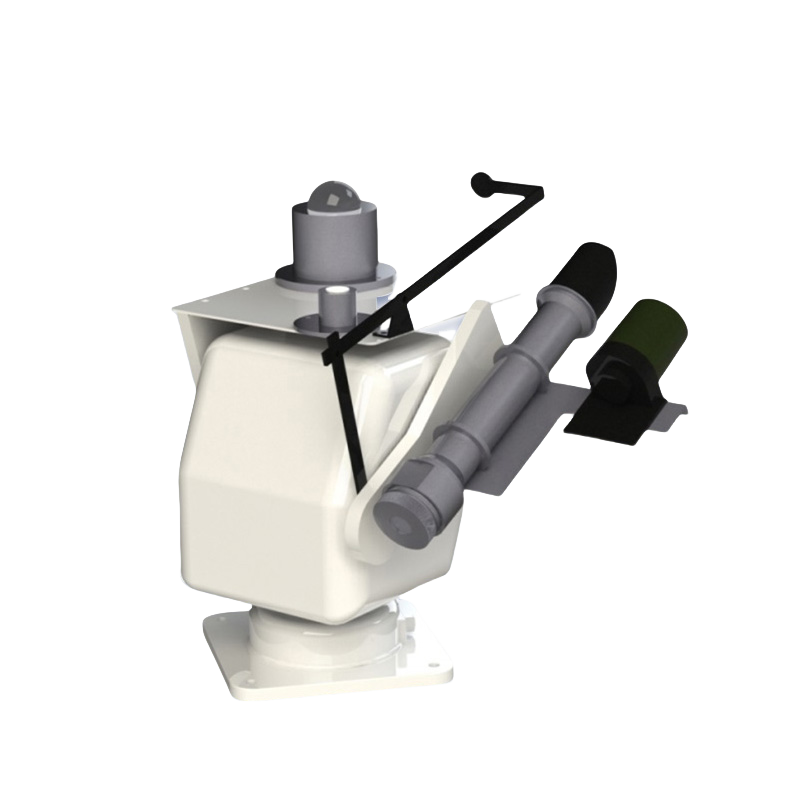

The METEO-2000 SunTracker is a lightweight, fully automatic, very low-power, two-axis solar tracker for aligning the Pyrheliometers sensors with the direction of the Sun’s Direct Normal Irradiance, as well as the shadow disk arm for the shading of the Pyranometer in charge of measuring the diffuse horizontal irradiance DHI, from any position on the Earth's surface..
特征

Optimized power consumption of 2.8 watts

Very high precision

Automatic diagnosis of possible inconsistencies in the irradiance measurements

Stand-alone operation

  • 描述
  • 特征描述
  • 技术特性
  • 下载
  • 问答
  • 问答

Technical Description

TheMETEO-2000 SunTracker System constitutes the most advanced technical solution to measure all components of Solar Radiation:

Direct Normal Irradiance (DNI)

Global Horizontal Irradiance (GHI)

Diffuse Horizontal Irradiance (DHI)

Global Normal Irradiance (GNI)

Global Tilted Irradiance (TGI)

Direct Normal Spectral Irradiance (DNSI)*

Apart from the classic solar sensors as the Pyranometers and Pyrheliometers, the SEMS System admits the connection of additional sensors for the measurement of other meteorological parameters or of another nature such as:

Air temperature

Relative humidity

Wind speed and direction

Atmospheric pressure

Precipitation

Albedo

Dirt Index of the solar panels (soiling), etc.

The values of all these parameters are stored in the Datalogger of the SEMS System and are transmitted to a Data Reception Center or SCADA via GPRS / 3G / 4G links, Radio, Fiber optics, etc. or through satellite data transmission networks, with global coverage.

Features

●  Very high precision: 0.1° on both axes (passive tracking) Better than 0.01° (active tracking with optional sun sensor).

●  Integrated GPS receiver.

●  Remote Positioning control

●  Communications via datalogger / controller

●  Fully automatic.

●  Stand-alone operation

●  Optimized power consumption of 2.8 watts

●  Automatic diagnosis of possible inconsistencies in the irradiance measurements, which avoids the recording of incorrect and therefore useless data.


Technical data

  • Technical parameters

    Measuring range

  • Motor type

    stepper motor

  • tracking mode

    Sun-sensor active mode
    Calculation passive mode

  • Pointing accuracy

    <0.1° (active tracking, solar sensor required) <0.5° (passive tracking, GPS calculation)

  • Angular velocity

    Maximum 4.5°/s

  • rotation angle

    Horizontal 0～350°, vertical 0～120°

  • GPS measurement method

    Timing + date calculation

  • Torque

    12Nm

  • payload

    17kg

  • Communication

    Wireless Bluetooth

  • Protection level

    IP66

  • Power supply method

    DC12V

  • working environment

    Temperature -20℃～+55℃ (normal temperature type) Temperature -40℃～+55℃ (low temperature type)
    Humidity 0～85%RH

  • Product size

    235(W)×181(D)×310(H) mm

  • weight

    6kg

  • What solar radiation components can METEO-2000 measure?

    • It captures ​all critical parameters in one system: • Direct (DNI), Global (GHI), Diffuse (DHI) Irradiance • Tilted (TGI) & Spectral Radiation (DNSI)* → Unique spectral analysis for panel efficiency gains

  • Can this integrate non-radiation sensors with SCADA?

    • ​Yes – unified industrial-grade telemetry: ✓ ​​+20 parameters: Wind, rain, soiling, temp/humidity ✓ ​Any SCADA integration: 4G/GPRS/fiber/satellite ✓ ​Global coverage: Remote deserts to offshore sites
