Technical Description

WTC-HR24Q Radar Flow Meter is a non-contact online flow monitoring product developed for complex meteorological scenarios such as rain, snow, and wind. The 24Q-300 radar flowmeter integrates the functions of rainfall-level determination, wind speed level measurement, wind direction determination, etc., which effectively avoids such problems. Its unique confidence evaluation function allows users to use data with more confidence.

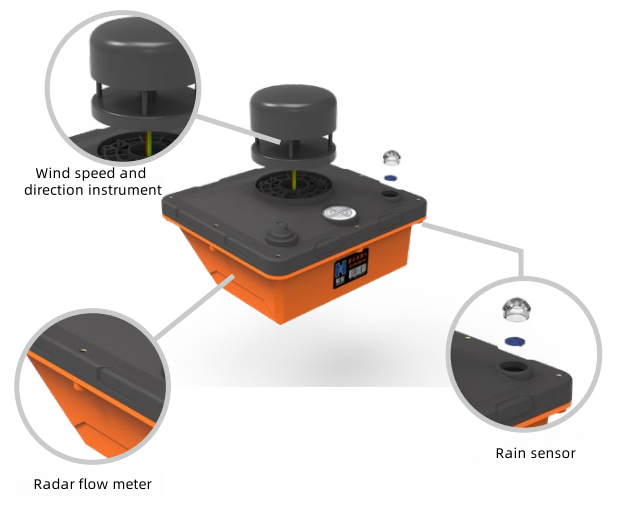

Product picture

Features

●   Multi-sensor Fusion

Feature: Integrated rainfall, wind speed, and wind direction sensors with environmental compensation.

Benefit: Mitigates external interference for accurate predictions, earning inclusion in the 2021 Ministry of Water Resources promotion directory.

●   CFD + Self-learning

Feature: Combines computational fluid dynamics (CFD) with self-learning algorithms and Kalman filters.

Benefit: Generates reliable flow rate measurements via patented hydraulic modeling, validated by the "Flow Measurement Method" patent.

●   Confidence-aware Techniques

Feature: Data validation protocols to assess reliability.

Benefit: Ensures trustworthy outputs for informed decision-making.

●   Highly Sensitive Antenna Technology

Feature: Advanced radar velocimeter with sensitivity enhancements.

Benefit: Patented "Highly Sensitive Radar Velocimeter" enables precise flow monitoring in diverse conditions.

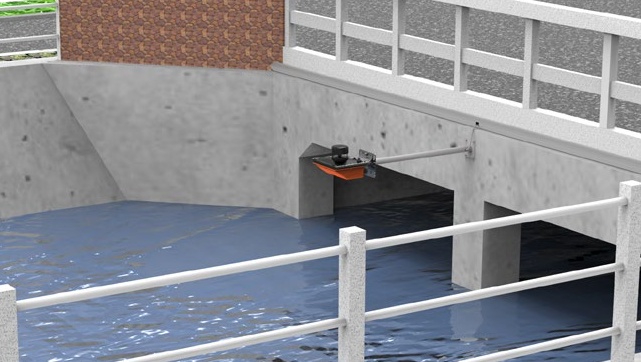

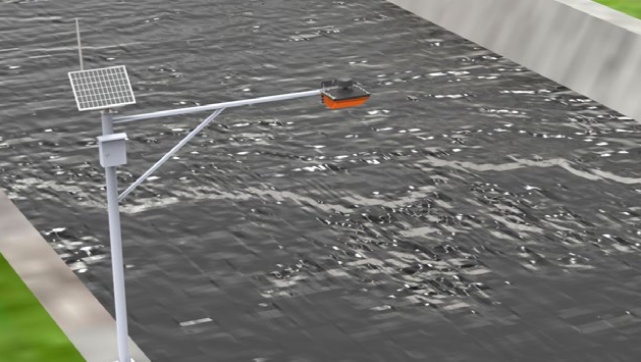

Scenario application

• How does the WTC-HR24Q ensure accuracy in harsh weather like rain or snow?​

  • It integrates ​rainfall grade judgment, wind speed/direction measurement, and advanced signal processing to dynamically compensate for meteorological interference, maintaining reliable flow data in storms, blizzards, or high winds

• What makes the WTC-HR24Q data trustworthy for critical decisions?​

  • Its ​unique confidence evaluation function​ analyzes measurement certainty in real-time, allowing users to filter low-reliability data and prioritize high-confidence readings for flood warnings or resource management
