Product Introduction

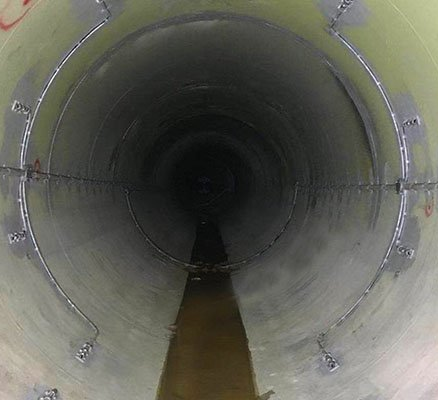

The device adopts the ultrasonic time-difference principle and is capable of measuring water flow for various water conveyance structures. It can measure the water flow of sections in different shapes, such as trapezoidal, rectangular, circular pipe, culvert, and irregular sections. The standards for the production and verification of this device comply with the national verification regulation Velocity-Type Flowmeters (JJG198-1994).

Technological Innovatio

Realizes refined measurement of cross-sectional velocity distribution by installing multiple groups of transducers in layers.

Strong adaptability: Resists interference from bubbles and suspended particles, and is less affected by environmental factors such as temperature.

Wide measuring range: Enables a high range ratio, covering flow rates from micro-flow to ultra-large flow.

Measuring scope: Can measure channels within 30 meters.

Structural Innovation

Independently designed transducer structure: Custom-molded dedicated transducer mounting brackets realize single-degree-of-freedom angle adjustment, simplifying the on-site calibration process.

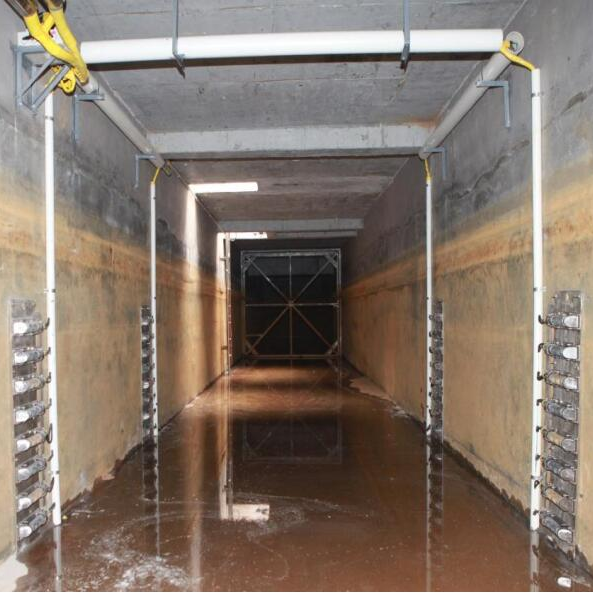

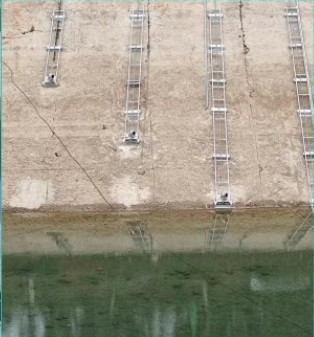

Layered installation method: Covers the velocity distribution of the entire cross-section, improving the representativeness of measurement.

Comparison table
