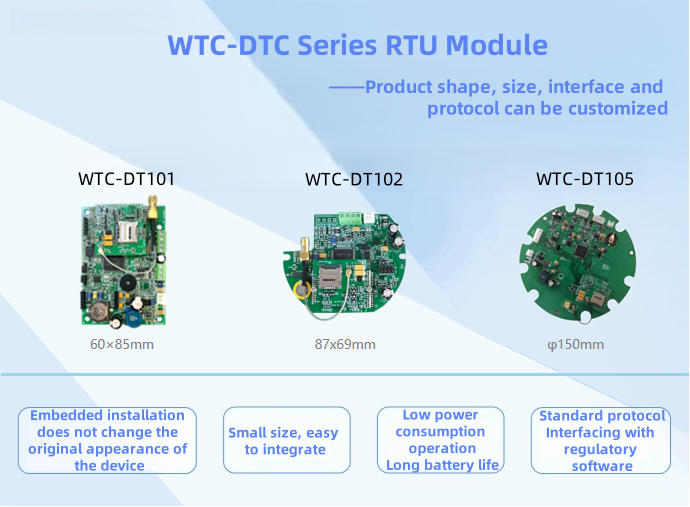

WTC-DTC Series RTU module
产品类别
在线咨询
*我们尊重您的咨询保密要求，所有信息均受保护。
确定提交


WTC-DT102
WTC-DT102
The embedded micro-power RTU is designed to be compact and easy to integrate. It operates with low power consumption and supports standard communication protocols such as those for water resources, hydrology, environmental protection, and MQTT. Additionally, it can be customized according to customer requirements without altering the original appearance of the equipment. It is widely applied in remote meter reading projects across various industries..
特征

Compact and space-saving design for easy installation in confined spaces.

Compatible with multiple standard reporting protocols for seamless integration with monitoring center platform software.

Ultra-low power consumption (μA-level).

Multi-center data reporting supports multi-level management.

  • 描述
  • 特征描述
  • 技术特性
  • 下载
  • 问答
  • 问答

Technical Description

The embedded micro-power RTU is designed to be compact and easy to integrate. It operates with low power consumption and supports standard communication protocols such as those for water resources, hydrology, environmental protection, and MQTT. Additionally, it can be customized according to customer requirements without altering the original appearance of the equipment. It is widely applied in remote meter reading projects across various industries.

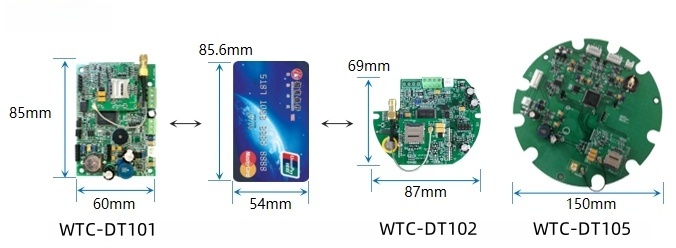

Product Size




Features

●  Data Collection: Periodically collect data and operational status from instruments/sensors/industrial equipment.

●  Remote Communication: Communicate with the monitoring center via 4G/5G/NB-IoT.

●  Storage Function: Cyclically store monitoring data locally. In the event of a power outage or network disruption, it automatically resumes and resends the data upon restoration, ensuring data integrity.

●  Convenient Maintenance: Enables parameter setting, program upgrades, product debugging, and more via serial port, Bluetooth, or remote network access.

●  Automatic Alarm: Automatically sends an alarm to the monitoring center when data exceeds limits, battery power is too low, etc.

●  External Power Supply: Can provide 5V and 12V DC power.


Technical data

  • Data collection interface

    1-Channel TTL or RS485

  • Data format

    8 data bits, 1 stop bit, and configurable parity bit (odd, even, or none).

  • Baud rate

    1200、2400、4800、9600、19200、38400、57600、115200(Bit/S)Optional

  • Communication method

    4G、5G、NB-loT、Bluetooth

  • Communication bit error rate

    ≤10-⁶

  • Dormant current

    ≤30uA/7.2V DC

  • Operating current

    ≤10mA /7.2V DC

  • Power supply voltage

    DC7.2V~30V;7.2VDefault

  • External dimensions

    87x69mm

  • SIM card type

    Micro SIM

  • Work environment

    Temperature：-40~+85℃;Humidity：≤95%

  • Parameter setting method

    Serial port, Bluetooth, remote parameter setting

  • Power supply

    DC7.2V~30V

  • External power supply

    Same as the power supply voltage

  • What power efficiency does this RTU achieve?

    • Micro-power operation: ✓ Sustained on coin-cell batteries for 5+ years ✓ <10μA sleep current for remote meter reading

  • Which protocols support industrial integration?

    • Plug-and-play compatibility: • MQTT • Modbus (Hydrology/Water Resources) • Environmental Protection Agency (EPA) standards • Custom protocol adaptation
