WTC-DT101
WTC-DT101

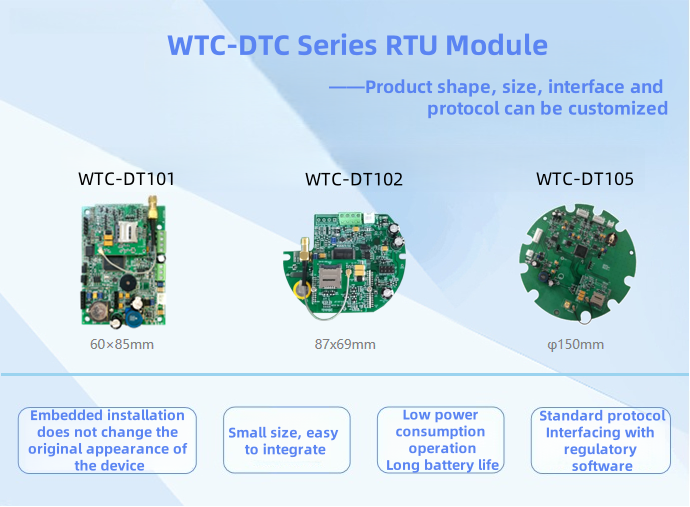

The embedded micro-power RTU is designed to be compact and easy to integrate. It operates with low power consumption and supports standard communication protocols such as those for water resources, hydrology, environmental protection, and MQTT. Additionally, it can be customized according to customer requirements without altering the original appearance of the equipment. It is widely applied in remote meter reading projects across various industries..
特征
  • 描述
  • 特征描述
  • 技术特性
  • 下载
  • 问答
  • 问答

Technical Description

The embedded micro-power RTU is designed to be compact and easy to integrate. It operates with low power consumption and supports standard communication protocols such as those for water resources, hydrology, environmental protection, and MQTT. Additionally, it can be customized according to customer requirements without altering the original appearance of the equipment. It is widely applied in remote meter reading projects across various industries.

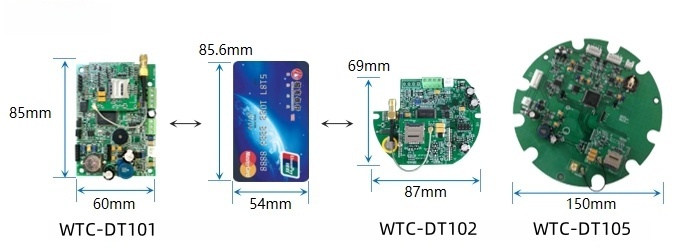

Product Size





Features

●  Data Collection: Periodically collect data and operational status from instruments/sensors/industrial equipment.

●  Remote Communication: Communicate with the monitoring center via 4G/5G/NB-IoT.

●  Storage Function: Cyclically store monitoring data locally. In the event of a power outage or network disruption, it automatically resumes and resends the data upon restoration, ensuring data integrity.

●  Convenient Maintenance: Enables parameter setting, program upgrades, product debugging, and more via serial port, Bluetooth, or remote network access.

●  Automatic Alarm: Automatically sends an alarm to the monitoring center when data exceeds limits, battery power is too low, etc.

●  External Power Supply: Can provide 5V and 12V DC power.


Technical data

  • Data collection interface

    1channel of RS232/RS485/TTL interfaces / Two PI (Programmable Input) digital input channels 1 additional channel of RS485

  • Data format

    8 data bits, 1 stop bit, and configurable parity bit (odd, even, or none).

  • Baud rate

    1200、2400、4800、9600、19200、38400、57600、115200(Bit/S)Optional

  • Communication method

    4G、5G、NB-loT、Bluetooth

  • Communication bit error rate

    ≤10-⁶

  • Dormant current

    ≤30uA/7.2V DC

  • Operating current

    ≤10mA /7.2V DC

  • Power supply voltage

    DC7.2V~30V;Default7.2V

  • External dimensions

    60×85mm

  • SIM card type

    Micro SIM

  • Work environment

    Temperature：-40~+85℃;Humidity：≤95%

  • Parameter setting method

    串口、蓝牙、远程设参Serial port, Bluetooth, remote parameter setting

  • Power supply

    DC7.2V~30V

  • External power supply

    Same as the power supply voltage, or DC 5V, 12V (the power supply voltage must be at least 1.5V higher than the external power supply)

  • What industries benefit from this RTU?

    • Cross-sector meter automation: → Water utilities (AMR) → Energy submetering → Environmental telemetry → Building management systems

  • How does low power reduce operational costs?

    • Zero maintenance for 60+ months: • Eliminates site visits for battery swaps • Solar-compatible for indefinite operation • -40°C to +85°C temperature resilience
