Technical Description

The WTC-5324 Ethernet Communicator is a network port-type universal controller with a modular and scalable measurement and control terminal that integrates data acquisition, logic control, and Ethernet-based remote communication into a single device. It can function independently as a compact data acquisition and automation controller or serve as the primary controller in extensive measurement and control systems.

The WTC-5324 connects to an Ethernet network using a 10Base-T/100Base-TX, full or half duplex, Ethernet interface. It has CS I/O and RS-485 ports for connecting  Welletronics instruments. A USB connection is provided for on-site configuration using Device Configuration Utility software.

WTC-5305 Expansion Peripherals

Expansion peripherals are used with data loggers to achieve many purposes, including the following: add additional channels, extend data communications networks, perform media conversions, read vibrating wire sensors, and build distributed measurement networks.

WTC-7305 Input and Output and peripherals enable you to add channels to control other devices, such as activating external devices and increasing the number of analogue and digital output or input channels of a data logger. Some of these peripherals have built-in relays to control external devices, and other peripherals may require connected relays depending on what you want to control.

Product Picture

Features

It supports communication with the server (host computer software) via Ethernet.

●  Ensure the stability and reliability of communication.

●  Ensure the real-time performance and determinacy of data.

●  Suitable for situations where high real-time data requirements exist or where a fiber optic network is already present on-site.

It collects and controls various instruments, sensors, and devices.

●  RS485: Collect output data from instruments such as flow meters and water quality meters.

●  AI: Collect signals from sensors such as pressure sensors and liquid level sensors.

●  DI: Collect the status of equipment operation, power supply, and the opening and closing of cabinet doors, etc.

●  DO: Support the control of equipment such as water pumps, sluice gates, and valves.

It automatically gives an alarm in case of abnormalities to promptly detect potential accident hazards.

●  The monitored data exceeds the limit.

●  Malfunctions occur in instruments and equipment.

The system has a flexible composition and can easily cope with project expansion.

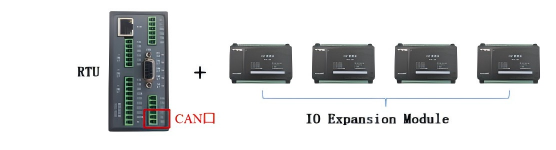

●  It can be cascaded with the Pingsheng IO expansion module DATA-7305 as required, and supports cascading up to 4 slave machines.

●  Communicate with the expansion module through the CAN port, achieving higher real-time data transmission.

●  With modular interface circuits, adding, expanding, or replacing slave machines will not affect the use of the master control logic.

• What core capabilities does the WTC-5324 offer for industrial automation?​

  • The WTC-5324 integrates ​data acquisition, logic control, and Ethernet-based remote communication​ into a single modular device, functioning as a standalone compact controller or a primary unit in large-scale systems. It supports 10Base-T/100Base-TX Ethernet, CS I/O, RS-485 ports, and USB for on-site configuration .

• How do WTC-5305/WTC-7305 peripherals extend measurement systems?​

  • These peripherals ​add channels, enable media conversions, and build distributed networks, allowing control of external devices (e.g., via relays) and expansion of analog/digital I/O for data loggers in scenarios like sensor reading or network scaling
