Technical Description

The WTC-PS100 requires either the SunSaver Regulator (option -SR) to connect the battery to a charging source (typically an unregulated solar panel). The PS100's enclosure can have either one or two cable-entry conduits. Several options are offered for mounting the enclosure to a tripod or tower.

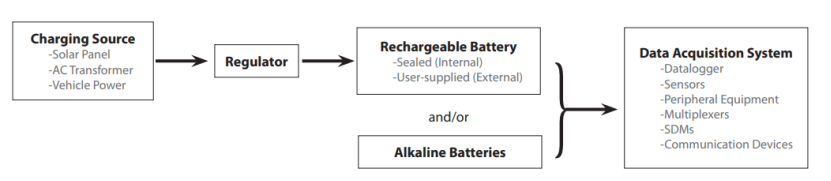

Welletronics’ data acquisition systems are powered by reliable, inexpensive 12V DC sources. Power consumption by our dataloggers, peripherals, and sensors is minimal, allowing extended operation from our standard sealed rechargeable battery or set of lithium or alkaline cells. Systems that require more power can be supplemented with external rechargeable batteries, regulators, and charging sources (ac transformer, solar panels). The diagram above depicts the interaction of the components in a power supply system.

Working Principle

Features

Key Features

●  Extendable High-Capacity Battery: Equipped with an 100 Ah sealed rechargeable battery, providing extended power availability for systems with substantial energy requirements.

●  Durable Enclosure: Housed in a 14 x 16 inch (35.6 x 40.6 cm) NEMA 4X-rated environmental enclosure, offering protection against harsh weather conditions and ensuring reliable operation in challenging environments.

●  Flexible Charging Options: Compatible with either the CH200 Regulator (option -CR) or the SunSaver Regulator (option -SR) to connect the battery to a charging source, such as an unregulated solar panel.

●  Multiple battery options: the system is compatible with both Lithium and alkaline cells, and either rechargeable or non-rechargeable.

Benefits

●  Extended Power Supply: The high-capacity battery ensures prolonged operation of connected systems, reducing the frequency of maintenance and battery replacements.

●  Environmental Protection: The rugged enclosure safeguards internal components from environmental factors, enhancing the longevity and reliability of the power supply system.

●  Adaptability: With support for different charging regulators and mounting options, the PS100 can be tailored to meet specific project requirements and site conditions.

●  Ease of Integration: Designed to seamlessly integrate with Welletronics data acquisition systems, facilitating straightforward deployment in existing setups.

• What essential component is required when connecting a solar panel to the WTC-PS100?

  • You ​must use the SunSaver Regulator (-SR option)​. ⚠️ Why? Unregulated solar panels can damage batteries. The regulator ensures safe, controlled charging.

• How do I power Welletronics data systems in remote sites?

  • All components run on ​12V DC​ via: ① ​Standard setup:​​ Sealed rechargeable battery ② ​Extended operation:​​ Lithium/alkaline cells or external batteries ③ ​High-demand systems:​​ Add solar panels + regulator + charging source (See diagram for typical configuration)
