Remote Monitoring and Management System for Secondary Water Supply Pumping Stations

System Overview

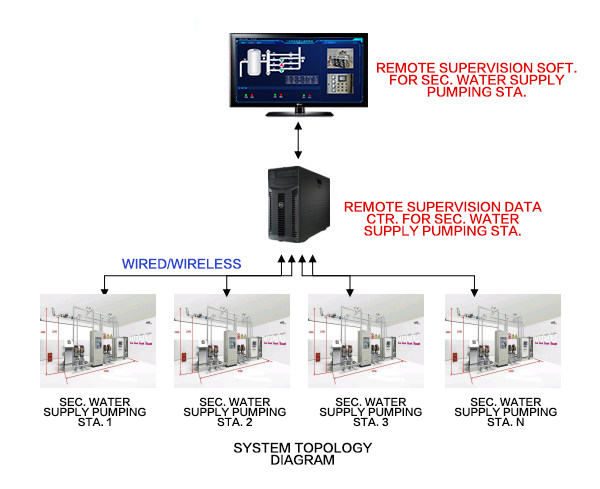

The remote monitoring and management system for secondary water supply pump rooms is divided into two parts: the monitoring center and the on-site pump room. The monitoring center further consists of two parts: the remote supervision data center for secondary water supply pump rooms and the supervision software. The remote supervision data center for secondary water supply pump rooms can connect with various secondary water supply equipment from different manufacturers downward and provide data to the remote supervision software for secondary water supply pump rooms upward, thereby enabling the monitoring center to conduct real-time monitoring and real-time control of each pump room.

Scope of application

The remote monitoring and management system for secondary water supply pump rooms is applicable to the construction, renovation and management of all secondary water supply pump rooms in residential quarters, hotels, hospitals, schools, enterprises, commercial complexes, etc., as well as to smart pump rooms of water supply companies, industrial and mining enterprises, and rural drinking water safety projects.

Service Support

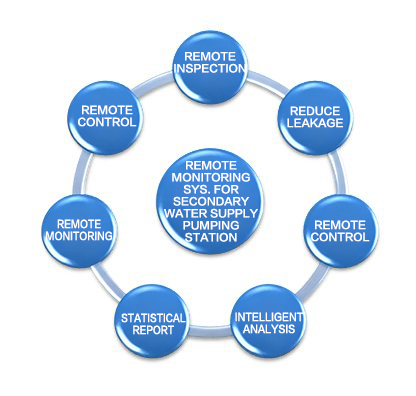

The remote monitoring and management system for secondary water supply pump rooms can effectively integrate a series of systems such as intelligent water supply, intelligent identification, human-computer interaction, energy consumption management, water quality assurance, and power supply assurance. As a result, it can reduce the input of human and material resources by approximately 80%, avoid the risk of water pollution by more than 95%, reduce the water leakage rate by 90%, and extend the service life of secondary pressure equipment by 1.5 times. It realizes the convenience of daily office work, refinement of work management, and intelligentization of command and decision-making for water supply management enterprises, effectively improving the management efficiency and social service level of water supply enterprises.

System Architecture

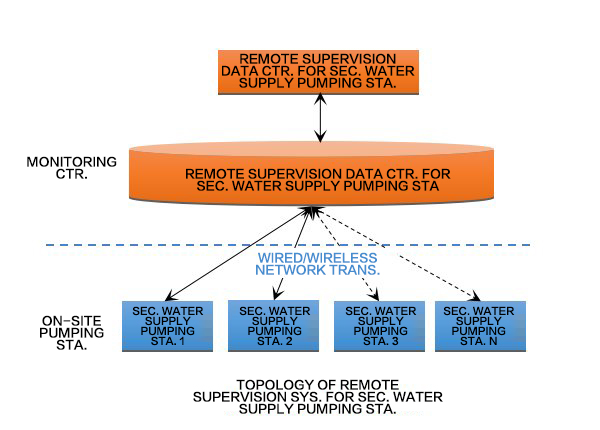

1. Supervision Center

The supervision center collects all data from various systems uploaded by the control cabinets of secondary water supply pump rooms through the remote supervision data center of secondary water supply pump rooms. Then, the supervision software conducts data statistical analysis and issues control instructions, thereby enabling the supervision center to perform real-time monitoring and real-time control of all secondary water supply pump rooms within the jurisdiction of the system. The main service groups are water supply companies, community property management, and other secondary water supply equipment management departments.

Functional Features (Regulatory Center)

2. On-site pump room

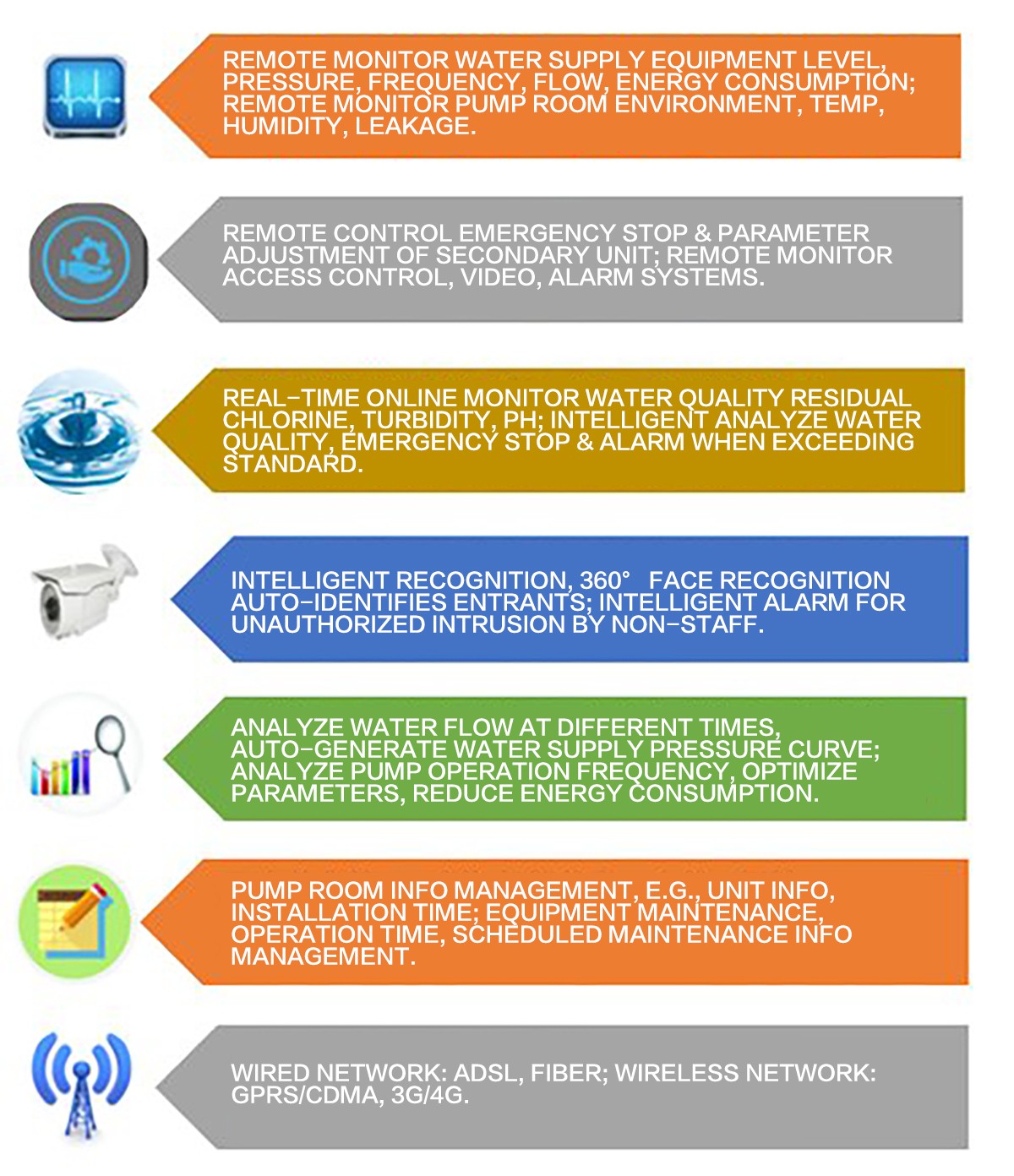

The on-site pump room collects data and information output by systems such as sensors of water supply equipment units, video security, water quality monitoring, energy consumption monitoring, flow monitoring, pipeline network terminal pressure monitoring, and environmental monitoring through the intelligent secondary water supply frequency conversion control cabinet, uploads them to the remote supervision data center of the secondary water supply pump room, and can receive command information issued by the supervision software to conduct real-time control over various systems in the pump room.

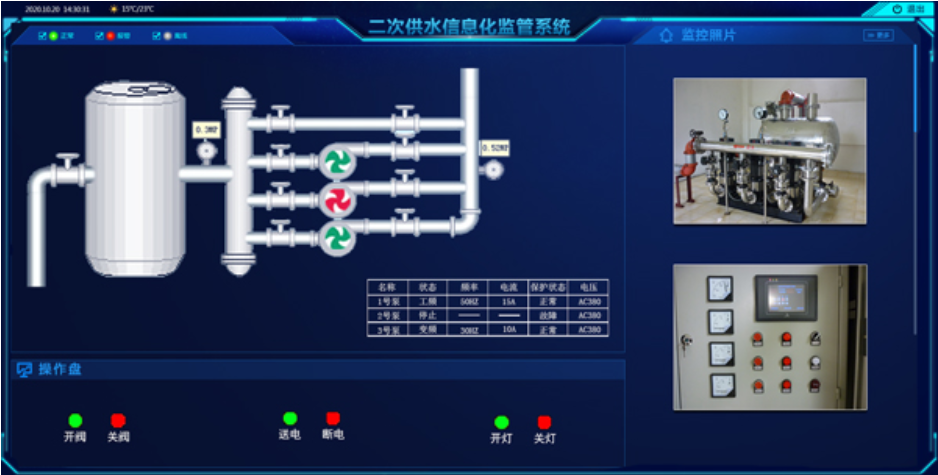

Software interface
